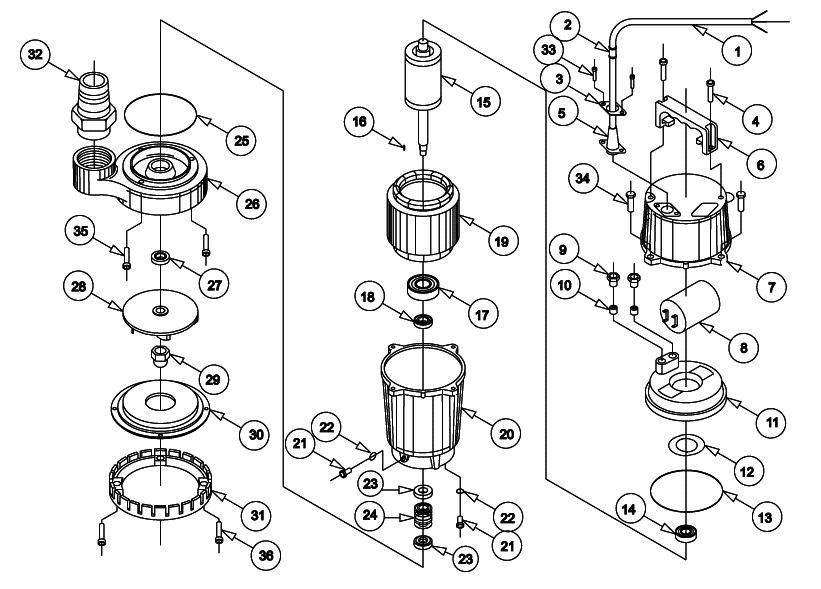

List of Applied parts in submersible pump model : S18-A |
|||
 |
|||
|
|
|||
|
No. |
Part Name |
No. |
Part Name |
| 1 | 10m Cable 3 x 1.5 | 22 | Stators winding (Single phase) |
| 2 | Cable Guard Rubber | 23 | Motor Casting |
| 3 | Clamping Plate | 24 | Steel Allen screw 8 x 12 |
| 4 | Steel Allen screw 6 x 20 | 25 | O-Ring 11 x 2 |
| 5 | Cable sealing Rubber | 26 | Seal Ceramic |
| 6 | Pump Handle | 27 | Mechanical seal |
| 7 | Motor cap | 28 | O-Ring 2.7 |
| 8 | Capacitor | 29 | Pump chamber |
| 9 | Wire brass Nut | 30 | Oil seal 30 x 16 |
| 10 | Wire sealing Rubber | 31 | Impeller cast iron |
| 11 | Dynamo medium | 32 | Impeller Nut |
| 12 | Ball bearing Resilient washer | 33 | Pump cap cast iron |
| 13 | O-Ring 133 x 3 | 34 | Pump filter |
| 14 | Ball bearing 6202 | 35 | Flexible hose-head (Nozzle) 2” |
| 15 | Shaft & Proper Rotor | 36 | Steel screw 5 x 16 (Hexagon) |
| 16 | Impeller pin | 37 | Steel screw 6 x 25 (Hexagon) |
| 17 | Ball bearing 6302 | 38 | Steel Allen screw 6 x 25 |
| 18 | Oil seal 30 x 15 | 39 | Steel Allen screw 6 x 25 |
